Diamond Dressing Tools

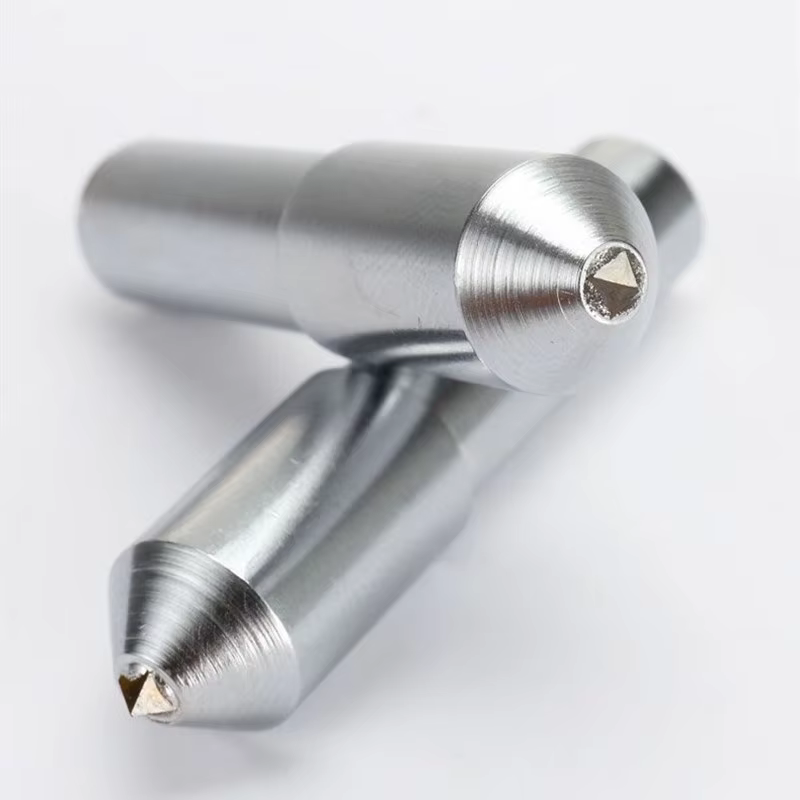

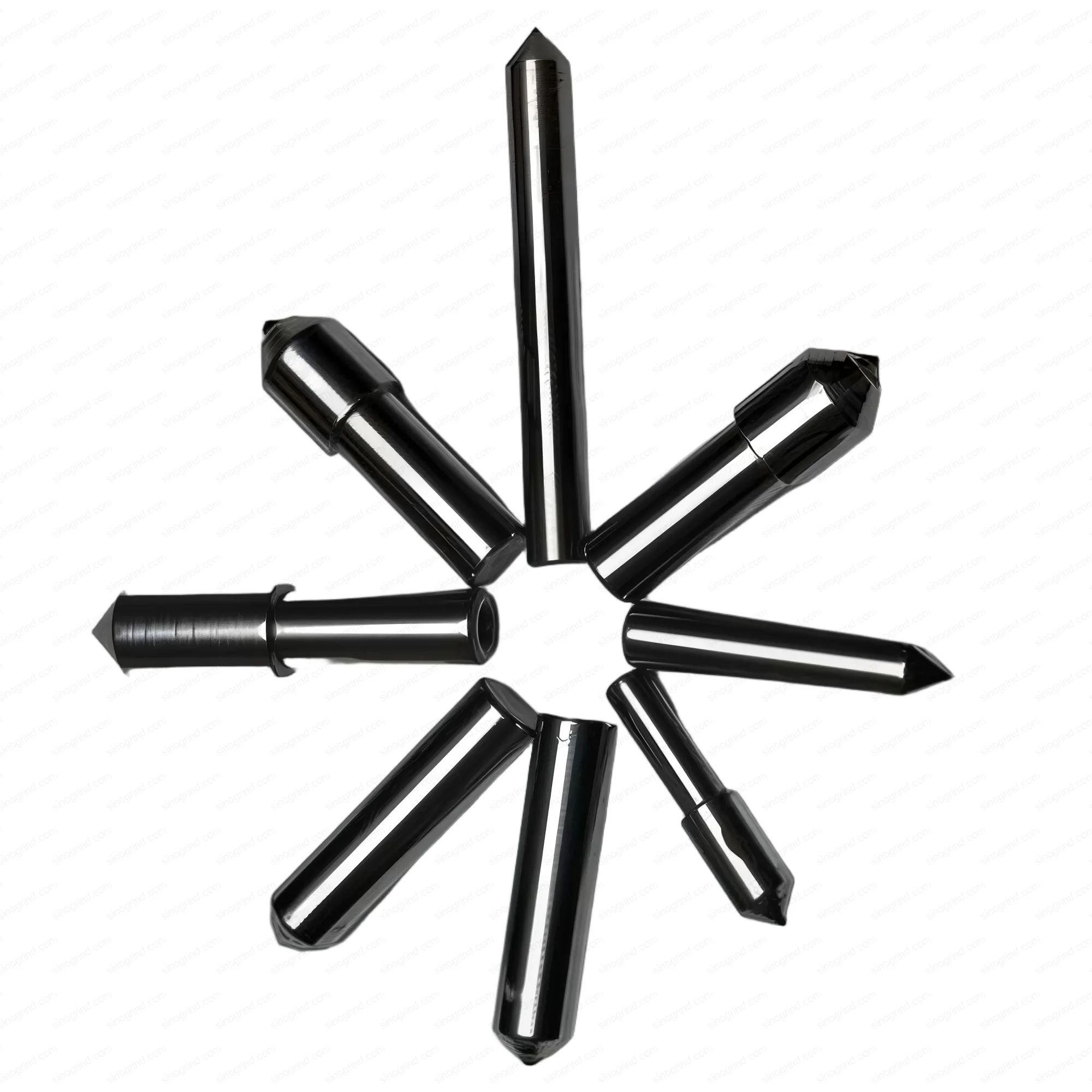

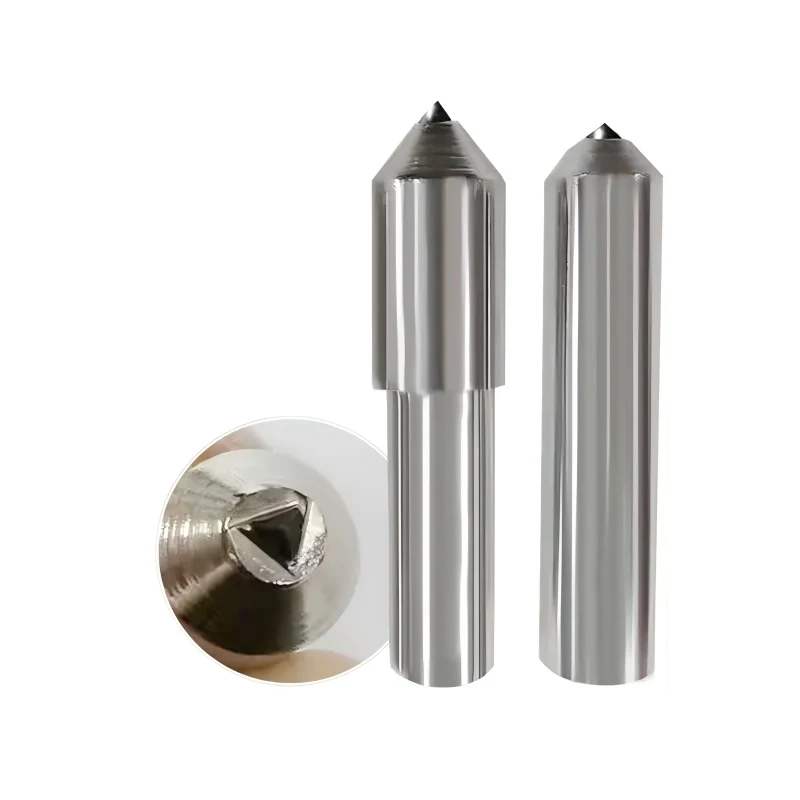

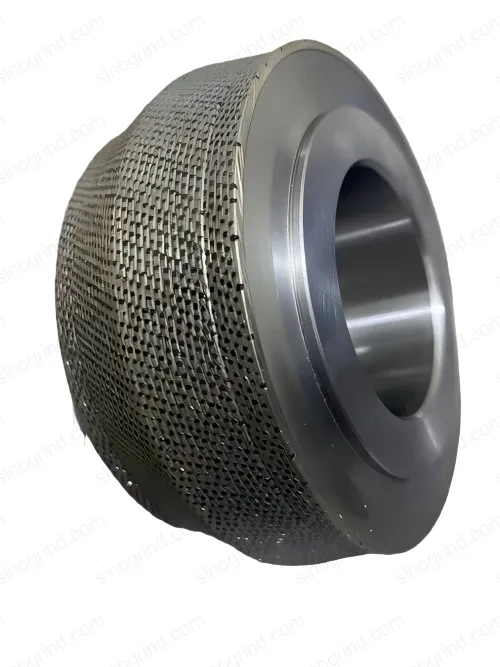

Diamond dressing rollers are used for continuous dressing on CNC grinding machines and provide consistent, automated wheel conditioning. They are ideal for high-production environments. Diamond dressing pens (single-point dressers) are used for manual dressing operations and offer more flexibility for one-time or intermittent dressing tasks.

Dressing frequency depends on the application, wheel type, and material being ground. Signs that dressing is needed include: decreased grinding efficiency, poor surface finish, increased power consumption, or wheel loading. For production environments, scheduled dressing at regular intervals maintains consistent quality. Typical ranges are every 50-200 parts depending on conditions.

Diamond size selection depends on the grinding wheel grit size being dressed and the required surface finish. Larger diamonds (4-8 carat) are used for coarse dressing of large wheels. Medium diamonds (1-3 carat) work well for general-purpose dressing. Small diamonds (0.25-1 carat) provide fine dressing for precision finishing applications.

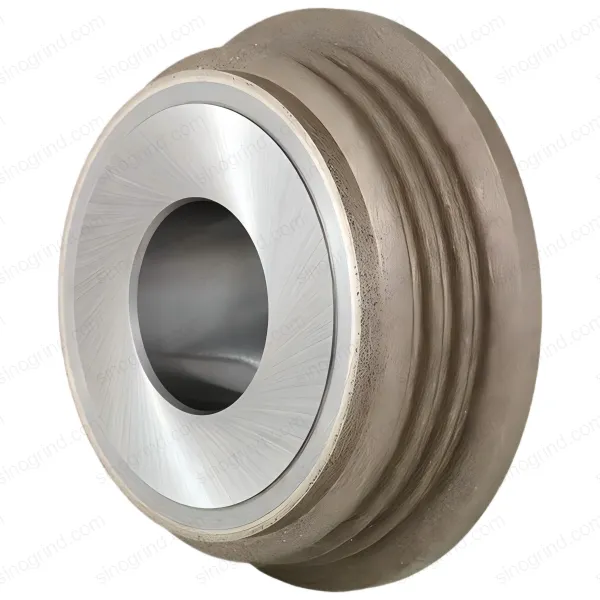

Dressing tools are designed for specific wheel types. Conventional abrasive wheels (aluminum oxide, silicon carbide) require different dressing approaches than superabrasive wheels (diamond, CBN). Diamond dressers are used on conventional wheels, while CBN dressers or specialized rotary dressers are used on superabrasive wheels. Using the wrong dresser can damage both the dresser and the wheel.

Key dressing parameters include: dress speed ratio (typically 0.5-0.8 for traverse dressing), depth of dress (0.002-0.01mm per pass), and crossfeed rate. For single-point dressers, a slow, steady traverse with light depth produces the best results. Rotary dressers require synchronized speed control. Always consult the wheel manufacturer's recommendations for optimal parameters.
