High-performance Polycrystalline Cubic Boron Nitride (PCBN) and CBN cutting tools engineered for precision machining of hardened steels, cast iron, and aerospace alloys.
Custom sizes and geometries available. Contact us for your specific application requirements.
Cubic Boron Nitride (CBN) is a synthetic superabrasive material second only to diamond in hardness. It is specifically designed for machining ferrous materials where diamond tools would cause chemical reactions. SinoGrind's CBN cutting tools offer exceptional thermal stability, chemical inertness, and wear resistance, making them the ideal choice for high-speed machining of hardened steels and high-temperature alloys.
Polycrystalline Cubic Boron Nitride (PCBN) is formed by sintering CBN particles under extreme heat and pressure. PCBN inserts combine the extreme hardness of CBN with the toughness of a polycrystalline structure, providing superior edge integrity and longer tool life compared to single-crystal CBN. This makes PCBN the preferred material for demanding hard turning, milling, and threading applications.
Compared to conventional carbide and ceramic tools, SinoGrind CBN and PCBN cutting tools deliver:

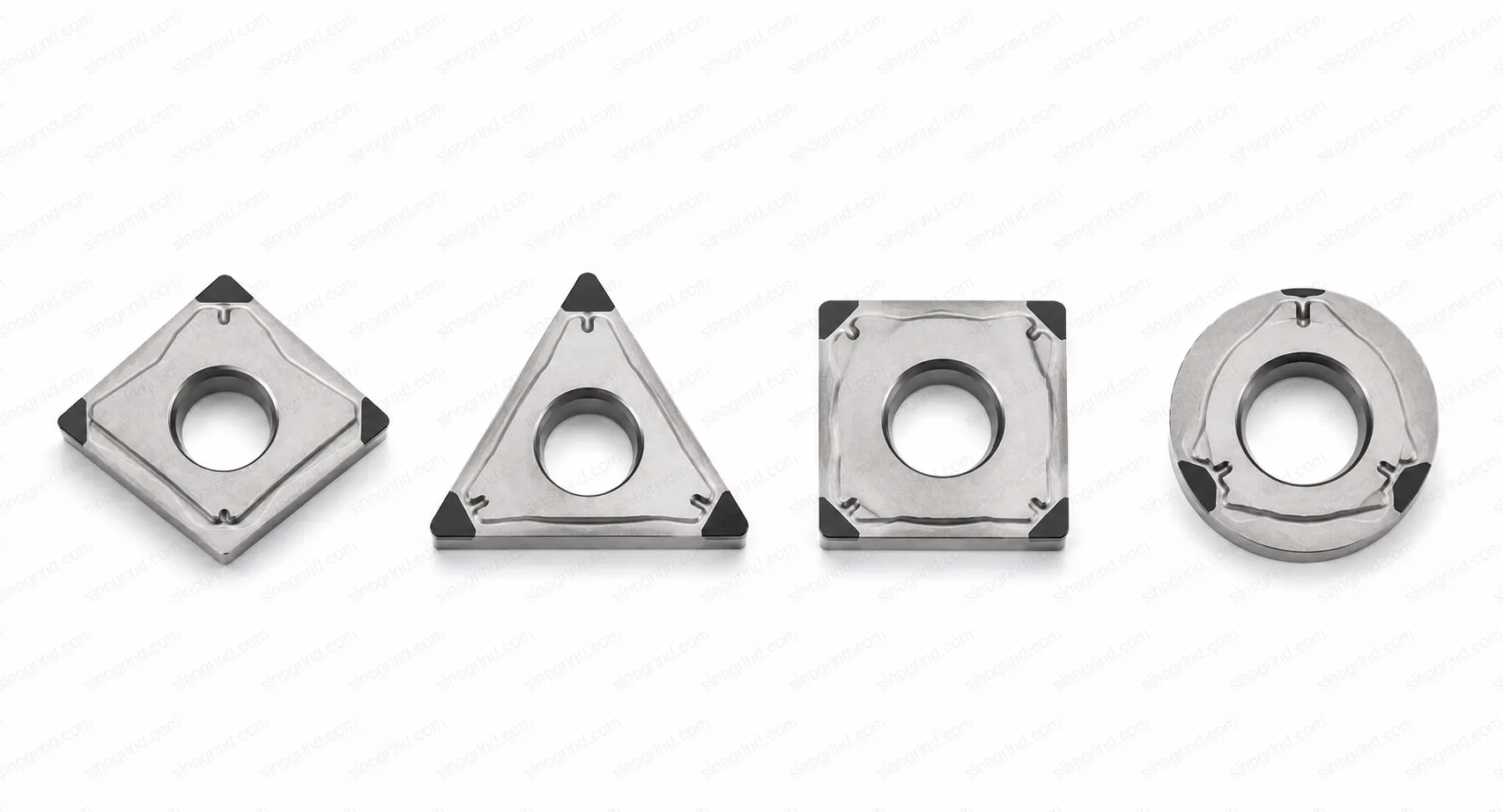

Polycrystalline CBN turning and milling inserts designed for hard turning of hardened steel (HRC 45+), cast iron, and high-temperature alloys. Available in ISO standard geometries including CNMG, DNMG, TNMG, and SNMG shapes.

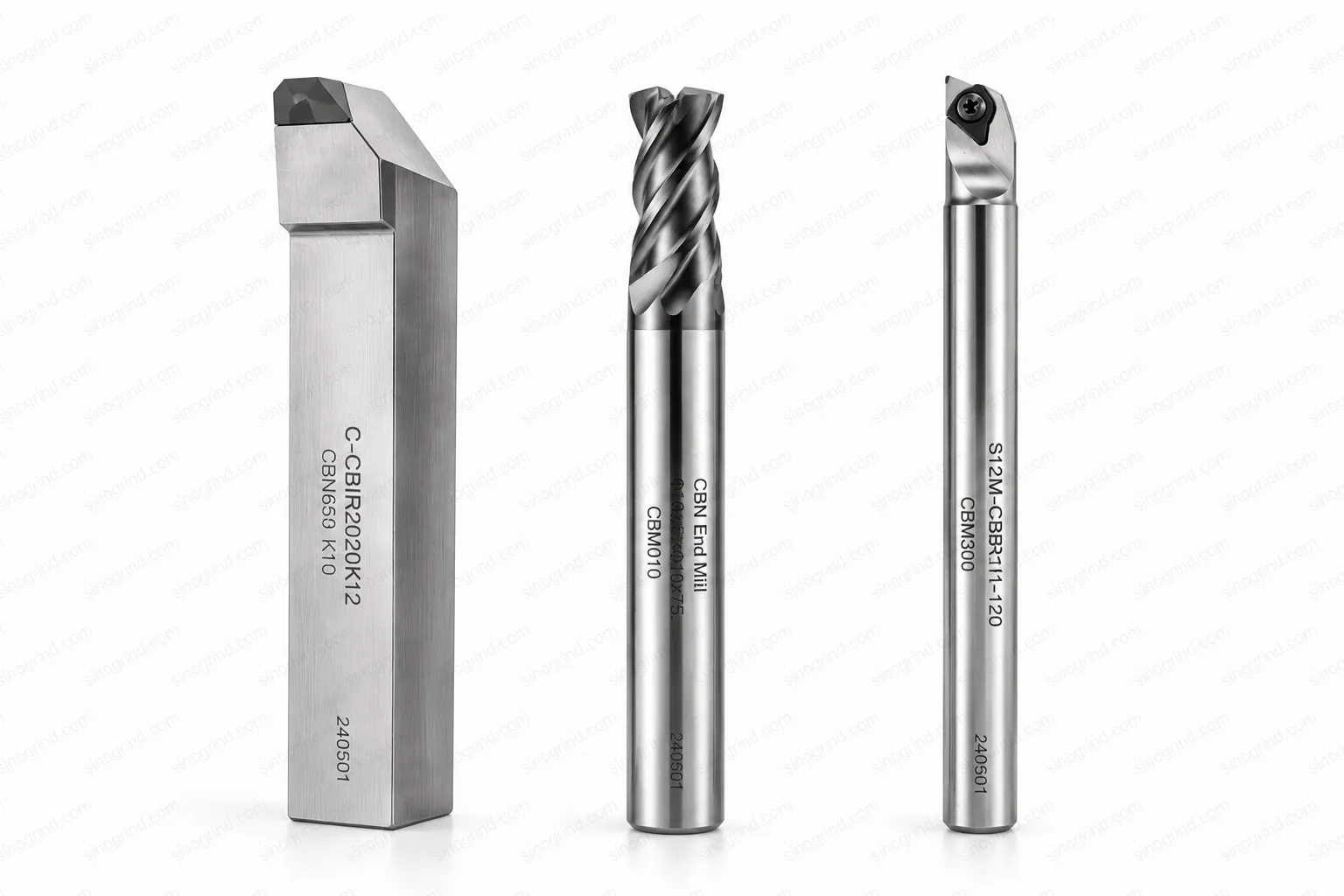

Solid CBN tool bits for precision finishing and semi-finishing operations. Ideal for applications requiring exceptional surface finish and dimensional accuracy. Available in various grades optimized for different workpiece materials.
Our PCBN inserts excel in hard turning of case-hardened gears, bearing races, and hardened shafts, eliminating the need for expensive grinding operations.
CBN tools deliver exceptional performance in high-speed machining of grey cast iron, ductile iron, and compacted graphite iron for automotive and industrial applications.
PCBN inserts provide superior wear resistance when machining nickel-based superalloys like Inconel 718, Waspaloy, and titanium alloys used in jet engine components.
CBN cutting tools are widely used for precision machining of camshafts, crankshafts, brake discs, and transmission components in the automotive industry.
SinoGrind utilizes state-of-the-art high-pressure, high-temperature (HPHT) sintering technology to produce CBN and PCBN materials with optimal grain size distribution and binder content. Our proprietary formulations ensure maximum tool life and consistent performance across production batches.
We offer custom CBN tool geometries, grades, and edge preparations tailored to your specific machining applications. Our experienced technical team provides application engineering support, tooling recommendations, and on-site consultation to optimize your machining processes.
Every SinoGrind CBN tool undergoes rigorous quality control including hardness testing, SEM microstructure analysis, dimensional inspection, and cutting performance validation. We maintain ISO 9001 quality management standards throughout our manufacturing process.
With efficient production capabilities and direct factory pricing, SinoGrind delivers high-quality CBN cutting tools at competitive prices. We ship worldwide with fast lead times and maintain inventory of popular PCBN insert geometries for immediate delivery.
Understanding the fundamental differences between CBN and diamond cutting tools is critical for selecting the right tool for your application. The key factor is the workpiece material: ferrous metals require CBN, while non-ferrous hard materials perform best with diamond.
| Workpiece Material | Recommended Tool | Bond/Grade Type | Typical Application |
|---|---|---|---|
| Hardened Steel (HRC45+) | PCBN Insert | High CBN content (80-90%) | Hard turning, gear machining |
| Cast Iron (Grey/Ductile) | PCBN Insert | Medium CBN content (60-80%) | High-speed machining, brake discs |
| Aerospace Alloys (Inconel) | PCBN Insert | High CBN content, reinforced edge | Turbine components, landing gear |
| Hardened Steel Grinding | CBN Grinding Wheel | Vitrified or resin bond | Cylindrical/surface grinding |
| Tungsten Carbide | Diamond Grinding Wheel | Metal or resin bond | Carbide tool regrinding |
| Ceramic/Glass | Diamond Grinding Wheel | Resin bond, fine grit | Precision form grinding |
| Semiconductor Materials | Diamond Cutting Tool | Electroplated or metal bond | Wafer dicing, lapping |
CBN (Cubic Boron Nitride) cutting tools are made from single-crystal CBN, while PCBN (Polycrystalline CBN) tools are made from multiple CBN crystals sintered together under high pressure and temperature. PCBN inserts offer better toughness and heat resistance, making them ideal for hard turning operations. CBN tool bits provide superior surface finish for precision grinding applications.
Use CBN tools for ferrous metals (hardened steel, cast iron, tool steel, high-speed steel) because carbon in diamond reacts with iron at high temperatures, causing rapid tool wear. Diamond tools are superior for non-ferrous materials (tungsten carbide, ceramic, glass, semiconductor). CBN hardness is 4,500 HV compared to diamond's 10,000 HV, but CBN excels at machining ferrous materials.
PCBN inserts effectively machine hardened steel (HRC45+), cast iron (grey, ductile, nodular), high-speed steel, aerospace alloys (Inconel, Waspaloy), bearing steels, and hardened tool steels. They are particularly effective for hard turning operations that replace traditional grinding, achieving surface finishes of Ra 0.2-0.8 um.
SinoGrind offers PCBN inserts in standard geometries: CNMG (80-degree diamond), DNMG (55-degree diamond), TNMG (60-degree triangle), SNMG (square), RCGT (round), DCGT (55-degree diamond, neutral), and TCGT (60-degree triangle, neutral). Each geometry is available in multiple grades optimized for different workpiece materials and cutting conditions.
SinoGrind CBN cutting tools deliver 3-5x longer tool life compared to conventional carbide tools in hardened steel machining. Typical tool life ranges from 30-60 minutes of continuous cutting for PCBN inserts in hard turning, and 200-500 hours for CBN grinding wheels depending on the application, workpiece material, and cutting parameters.
Yes, CBN grinding wheels are widely used for grinding hardened steel, tool steel, and ferrous alloys. SinoGrind offers CBN grinding wheels in resin, metal, and vitrified bonds for cylindrical grinding, surface grinding, centerless grinding, and tool grinding applications. Vitrified bond CBN wheels provide the best material removal rates, while resin bond wheels offer superior surface finish.
SinoGrind CBN cutting tools serve automotive (crankshaft, camshaft, bearing race machining), aerospace (turbine blade, landing gear components), bearing manufacturing (inner/outer ring grinding), die and mold making (hardened steel finishing), and general precision manufacturing (shaft, gear, hydraulic component machining).
Select the PCBN grade based on workpiece material hardness, cutting speed, and surface finish requirements. For hardened steel (HRC50-65), use higher CBN content grades (80-90%) for maximum wear resistance. For cast iron and interrupted cuts, use lower CBN content grades (50-65%) for better toughness. For finishing operations, use fine-grain PCBN grades. Contact SinoGrind technical team for specific grade recommendations.
